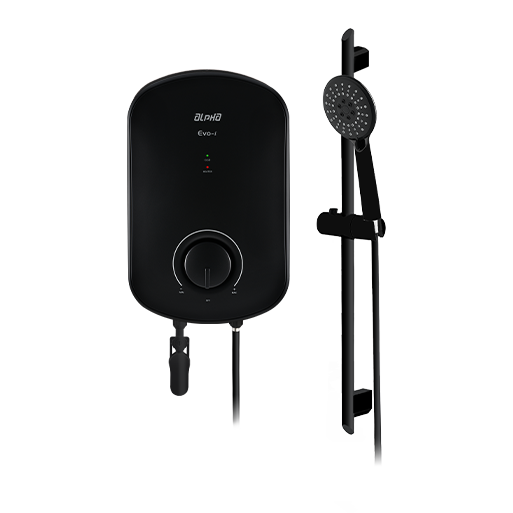

Alpha DC Pump Water Heater EVOI-B (Black)
Key features
- 3.8 kW instant water heater
- 36 W DC pump with Pump Activator and Pump Control
- Dual thermal protection (55 °C / 85 °C)
- Double Relay ELSD
- IP25 splash-proof casing
- 3-spray shower head included
Instalment available with AEON Credit & Atome · Delivery & installation
| Brand: Alpha |
| Type: Instant water heater |
| Model: EVOIB |
| Dimensions: 230 × 360 × 87.8 mm (W × L × H) |
| Net weight: 2 kg |
Strong showers, even on low water pressure.
The EVO-i is a 3.8 kW instant water heater with a built-in 36 W DC pump. The pump boosts weak water pressure so your shower stays strong, and Pump Control lets you set the pressure you like.
Safety is layered: two thermal cut-offs, a Double Relay ELSD that cuts both live and neutral during a surge, and an IP25 splash-proof casing.
More shower power while using energy and water efficiently.
Keeps pressure strong even when the inlet flow is low.
Adjust the water pressure to your preference.
Thermal cut-off at 55 °C and 85 °C, Double Relay ELSD, IP25 casing and nylon-fibre insulation.
EVO-i
Specifications are from the manufacturer and may change without notice. Ask us if a detail matters for your home.
General
| Model | EVO-i |
|---|---|
| Colours | White, Matt Black |
| Heater power | 3.8 kW, 240 V, 50 Hz |
| Temperature control | Electronic |
| Protection | IP25, Class 1 |
Pump & water
| Pump | DC, 36 W |
|---|---|
| Pump noise | Under 40 dB |
| Water connection | 15 mm (½" BSP), single point |
| Minimum flow rate | 3 L/min |
| Minimum pressure | 20 kPa (0.2 bar) |
| Maximum inlet pressure | 0.38 MPa (3.8 bar) |
Safety
| Thermal protection | Tier 1 cut-off 55 °C, Tier 2 cut-out 85 °C |
|---|---|
| Surge protection | Double Relay ELSD |
In the box
| Shower head | 3-spray, adjustable patterns |
|---|---|
| Hose | Anti-tangle, copper cap |
| Stop valve | Model-dependent lever valve |
Dimensions
| Size (W × L × H) | 230 × 360 × 87.8 mm |
|---|---|
| Net weight | 2.0 kg |
Water heater installation is available. Delivery rates depend on your area.
Apply for an instalment plan with AEON Credit or Atome. We submit the application for you. Get RM100 Touch 'n Go eWallet credit on instalment purchases of RM2,000 and above.
In-warranty claims handled with you, and out-of-warranty repairs with genuine parts.
