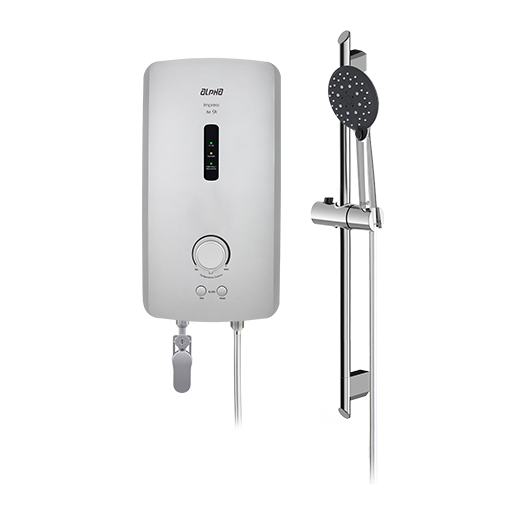

Alpha Non-Pump Water Heater IM-9E
Key features
- 3.8 kW instant water heater, no pump
- Line Fault Indicator
- Dual thermal protection
- Double Relay ELSD
- IP25 splash-proof
Instalment available with AEON Credit & Atome · Delivery & installation
| Brand: Alpha |
| Type: Instant water heater |
| Model: IM-9E |
| Pump: None |
| Heater power: 3.8 kW, 240 V, 50 Hz |
| Net weight: 2.0 kg |
A hot shower, the moment you turn it on.
An instant water heater warms the water as it flows, so there's no tank to wait for.
This non-pump model suits homes that already have good water pressure.
A red/green light warns of incorrect wiring.
Cuts power if the water gets too hot — auto cut-off at 55°C, overheat cut-out at 85°C.
Cuts both live and neutral current during an electrical surge.
Keeps water away from the internal parts.
IM-9E
Specifications are from the manufacturer and may change without notice. Ask us if a detail matters for your home.
General
| Type | Instant water heater |
|---|---|
| Brand | Alpha |
| Model | IM-9E |
| Heater power | 3.8 kW, 240 V, 50 Hz |
| Water connection | 15 mm (½" BSP), single point |
| Protection | IP25, Class 1 |
| Temperature control | Electronic |
| Minimum flow / pressure | 2 L/min / 20 kPa (0.2 bar) |
| Maximum inlet pressure | 0.38 MPa (3.8 bar) |
| Pump | None |
| Colours | Matt Black, Metal Black, Misty Silver |
Dimensions
| W × L × H | 213 × 406 × 86 mm |
|---|---|
| Net weight | 2.0 kg |
